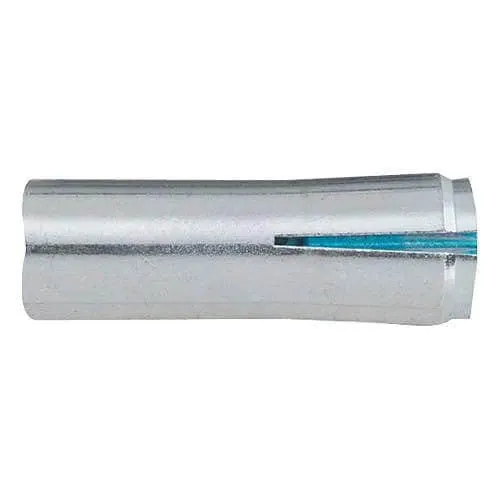

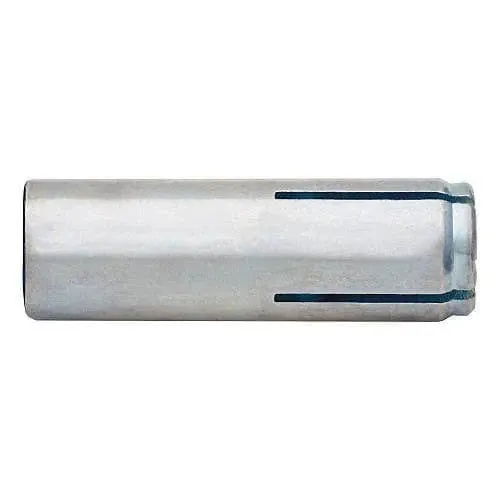

The Smart DI is an all-steel, machine bolt anchor available in carbon steel. It can be used in solid concrete, hard stone, and solid block base materials. The Smart DI is specifically designed to be easier to fully set into the base material during installation as a benefit to the user.

Features

• Installs with reduced effort compared to traditional drop in style anchors
• Can be installed using the manual setting tool or Smart DI system with a hammer-drill

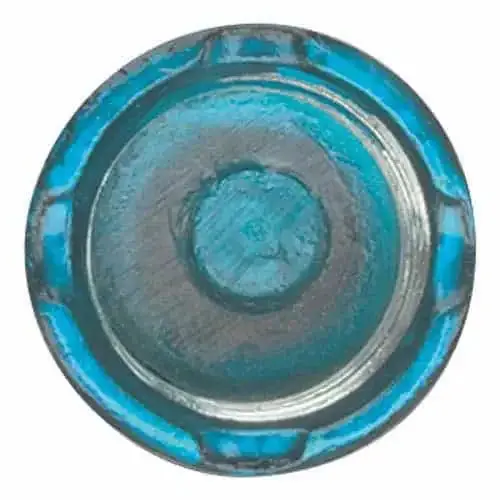

• Setting indicator makes identification of properly set anchors easy (when installed using the smart tool and smart bit)
• Internally threaded anchor for easy bolt removability and service work

Applications

• Suspending Conduit
• Fire Sprinkler
• Cable Trays and Strut
• Concrete Formwork
• Pipe Supports
• Suspended Lighting

Specifications

• Anchor Materials: Zinc Plated Carbon Steel
• Thread Version: UNC Coarse Thread
• Anchor Size: 1/4"
• Anchor Diameter Outside: 3/8"
• Anchor Length Overall: 1"
• Quantity: 100
• Suitable Base Materials: Normal-weight concrete, Lightweight concrete
• Approvals & Listings: FM Global (Factory Mutual) - File No. 3059197, (UL Listed) – File No. EX1289
